Place of Origin: | CHINA |
Brand Name: | NANOLINK |
Certification: | SGS COA |
Model Number: | CD FILM |
Minimum Order Quantity: | negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | PALLET |
Delivery Time: | 3-7DAYS |
Payment Terms: | T/T |
Supply Ability: | 30T EVERYDAY |
Item: | PET Window Film | Weather Resistance: | 5 Years |
---|---|---|---|
Length: | 6000m | Width: | 1560mm |
Thickness: | 23-50um | VLT: | 2-90% |
IRR: | 2-20% | UVR: | 50-100% |
Application: | Single And Double Glazed Windows | ||
Highlight: | sun film for car windows,anti glare window film |

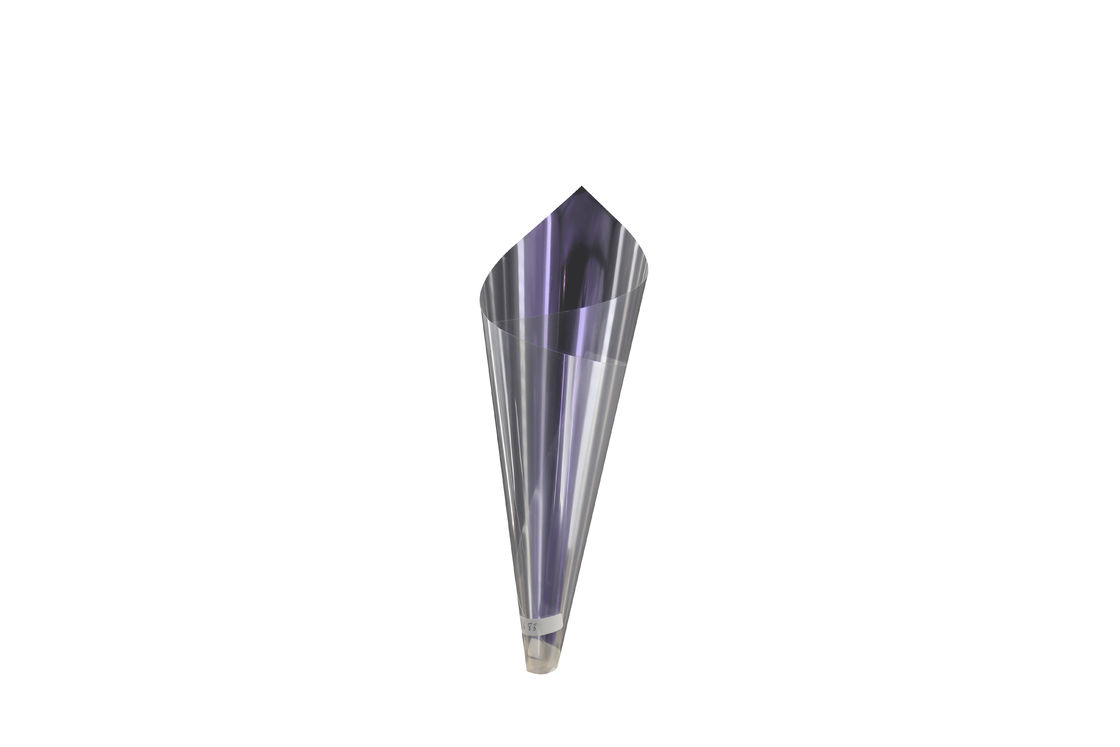

50-100% UVR PET Window Film For Single And Double Glazed Windows
PET Window Film Feature
Hight heat rejection and energy-effecient
Solar control protect car
Metallic coating reflective heat
Ehance Privace
PET Window Film Advantage
1. High heat rate
In the hot summer, it can be separated by infrared, ultraviolet
damage to the body, and save Air-conditioning energy. Meantime,it can block up above 79% heat may enter the house
through the window.
2. To prevent fading
It will enable the car to reduce the fading of goods and decorating.Greatly reduced the fading of goods and decorating
in the car.
3. Preserve the privacy
After the film can be effectively protect the privacy,improve the
car's comfort, and make it more attractive.It can also keep your
living space free.
4. Winter to keep warm
In winter it can be 20 to 30% of heat reflection back to the house to make the house more warm and comfortable.
PET Window Film Parameters
Item | Unit | Reference Value | Test Value | |
Average Thickness | μm | 23 | 23±1 | |
Tensile Strength | MD | Kg/mm2 | 26 | 27±5 |
TD | Kg/mm2 | 24 | 26±5 | |
Elongation | MD | % | 127 | 140±40 |
TD | % | 110 | 130±40 | |
Heat Shrinkage | MD | % | 1.4 | 1.5±1 |
TD | % | 0.3 | 0±1 | |
Friction Shrinkage | US | - | 0.25 | 0.4±0.2 |
UK | - | 0.22 | 0.3±0.2 | |
Haze | % | 1.5 | ≤2.0 | |
Definition | % | 99.8 | ≥99 | |
Wetting Tension | Dyne/cm | 52 | ≥50 | |
VLT | % | 0-88 | / | |
IRR | % | 11 | 11±2 | |
UVR | % | 99 | 99±1 |
How to install the film
Step 1
Clean your windows thoroughly with a mixture of 1 teaspoon baby shampoo to 1 gallon bottled water. It's important that you use a solution of no-tears baby shampoo and bottled water to provide the correct pH and final clarity to your project. Never use any cleaner containing vinegar or ammonia to clean the film or windows, as this could damage the film.
Step 2
Cut a piece of film 1 inch wider and 1 inch longer than the window you plan to cover.
Step 3
Spray the window liberally with the same solution you used to clean the windows. Keep your hands moistened with the solution to prevent leaving fingerprints on the film.
Step 4
Use two pieces of transparent tape to remove the backing from the film. After you have exposed an inch or so of the film's adhesive backing, spray the film with the solution. On large pieces, you'll need a helper to keep from contaminating the film when the backing is removed.
Step 5
Starting at the top, place the adhesive side of the film on the glass and work your way down the window. Position the film so it's centered on the glass and spray with the solution. Squeegee any bubbles to within 2 inches of the edge of the window. Keep the surface of the film wet with the solution so the squeegee will pull across it easily.
Step 6
Use a utility knife to trim the film. Leave a 1/16-inch border between the edge of the film and the window.
Step 7
Respray the surface of the film and squeegee out any bubbles. Bubbles will be able to escape through the space between the film and the edge of the window.
Step 8
The film should begin to stick within 30 minutes and normally cures fully in 1 day.
Experienced R&D Department
Nanolink is backed by a strong R&D team, which is composed of creative and motivated professionals.
Our experienced R&D team can provide new product designs by manipulating science and research functions to better serve our clients and promote our products. In other words, we are able to offer the best-quality services with the most competitive prices.
The Nanolink Research and Development team works continuously to meet your future requirements.
We have two manufacturing plants, both located in Shanghai. The plants have technologically advanced laminating and coating lines, able to produce all of our PET films in-house so that we can control every aspect of quality.
We promise to deliver products timely and offer special products for meeting your exact specifications. For your assurance, chances of your next trading partner are here.
Customized Solutions
Besides our wide variety of products we are able to offer customized solutions and special developments to meet the particular demands and needs of our customers.
Nanolink's PET system produces unique chip-dyed films with a superb contractibility from high clarity PET films. Nanolink produces dyed films with a wide range of colors and an excellent durability. Our chip-dyed films have the function of 99.99% UV block, high heat insultation, high light transmittance, and extremely long durability.
